日本CCS晰晰视LED环形光源HLDR3-100BL-DF-W
详情介绍：
日本CCS晰晰视LED环形光源HLDR3-100BL-DF-W
HLDR3-100BL-DF-N / HLDR3-100BL-DF-M / HLDR3-100BL-DF-W

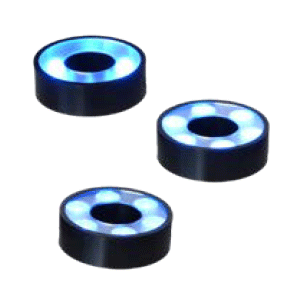

Ring type blue LED lights for long distance illumination.
Three types of light directivity depending on the application conditions:
・Narrow type (HLDR3-100BL-DF-N)
・Medium type (HLDR3-100BL-DF-M)
・Wide type (HLDR3-100BL-DF-W)
Outer diameter φ100mm, inner diameter φ44mm.
产品详细信息
| LED发光颜色 | Blue |
|---|---|
| 峰值发光波长 | 465 nm typ. |
| 外观尺寸 | Outer diameter 100 mm, Inner diameter 44 mm, Height 31 mm |
| 输入电压 | 24 VDC |
| 消耗功率 | 15 W max. |
| 极性, 信号 | 1: (+), 2: NC, 3: (-) |
| 线缆长度 | 300 mm |
| 外壳材质 | Aluminum alloy |
| 使用温湿度 | Temperature: 0 to 40 ℃, Humidity: 20 % to 85 %RH (with no condensation) |
| 保存温湿度 | Temperature: -20 to 60 ℃, Humidity: 20 % to 85 %RH (with no condensation) |
| 冷却方式 | Natural air-cooling |
| 输入端口 | SMR-03V-B |
| 重量 |
HLDR3-100BL-DF-N: 340 g max. HLDR3-100BL-DF-M: 340 g max. HLDR3-100BL-DF-W: 310 g max. |
| 附属品 | 使用说明书 |
| 适合规格 |
CE, UKCA, RoHS, REACH IEC 62471 HLDR3-100BL-DF-N: High risk HLDR3-100BL-DF-M: Mod risk HLDR3-100BL-DF-W: Mod risk |
| 备注 | Please inquire if you would like to use in combination with a strobe control unit (overdrive type) |
外形尺寸图(mm)
